FEATURES
6 mm high grade plate shell
Wear plates - 12 mm base, 10 mm sides
Side cutters and longer base for excellent visibility
150 x 20 mm cutting edge
Safety steps fitted
Extreme Duty only - Plate work bracing on back for more strength
Australian made construction and design
Universal Skid Steer mount as standard - others POA
OPTIONAL EXTRAS
Spill guard
150x16 mm Bolt-on cutting edge

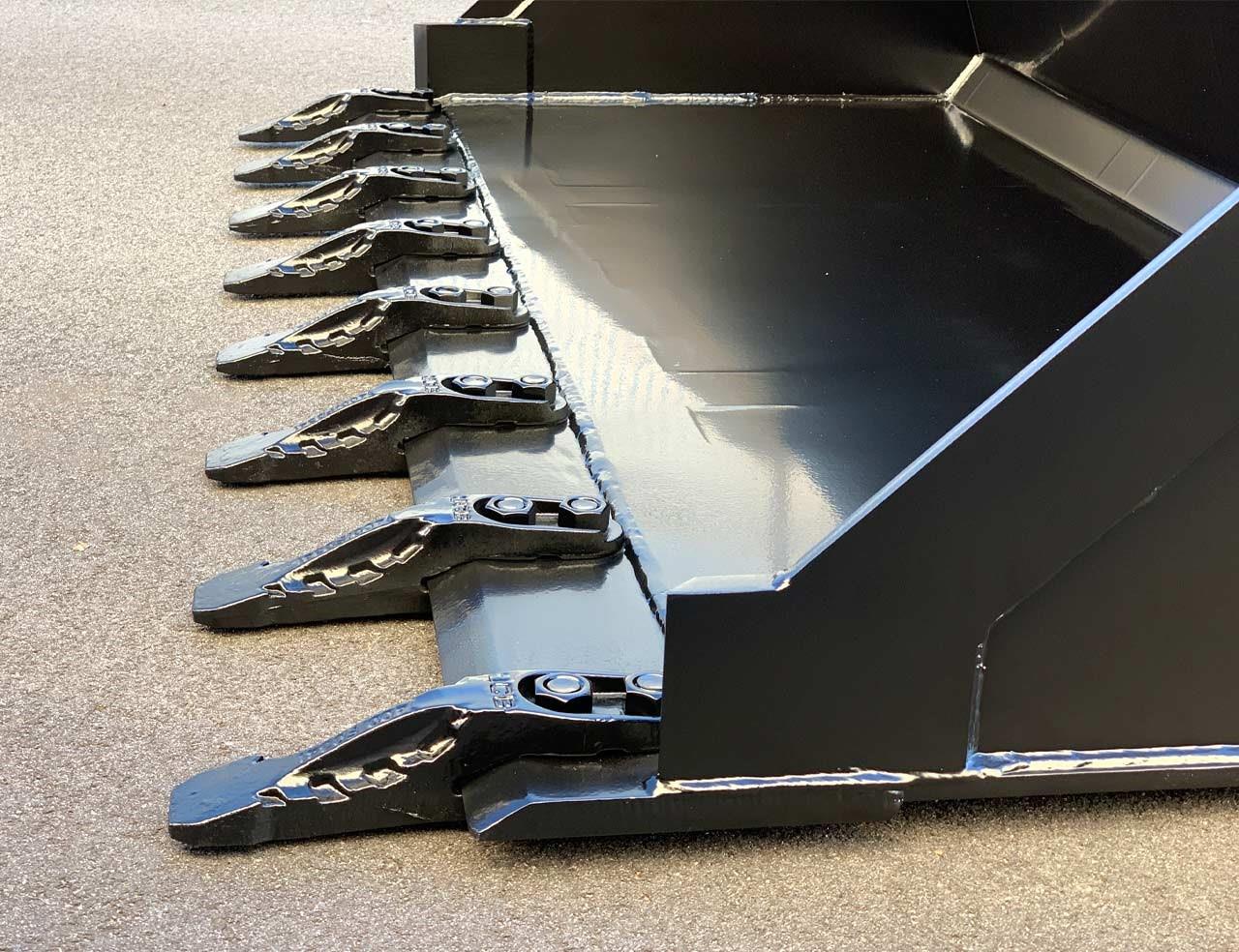

Adaptors and Keech / Esco style teeth (fitted)
Additional 125 mm floor length
Certified hook (fitted) - 1000 kg / 2500 k
For more information on how we collect, hold, use and disclose personal information, please see our privacy policy.

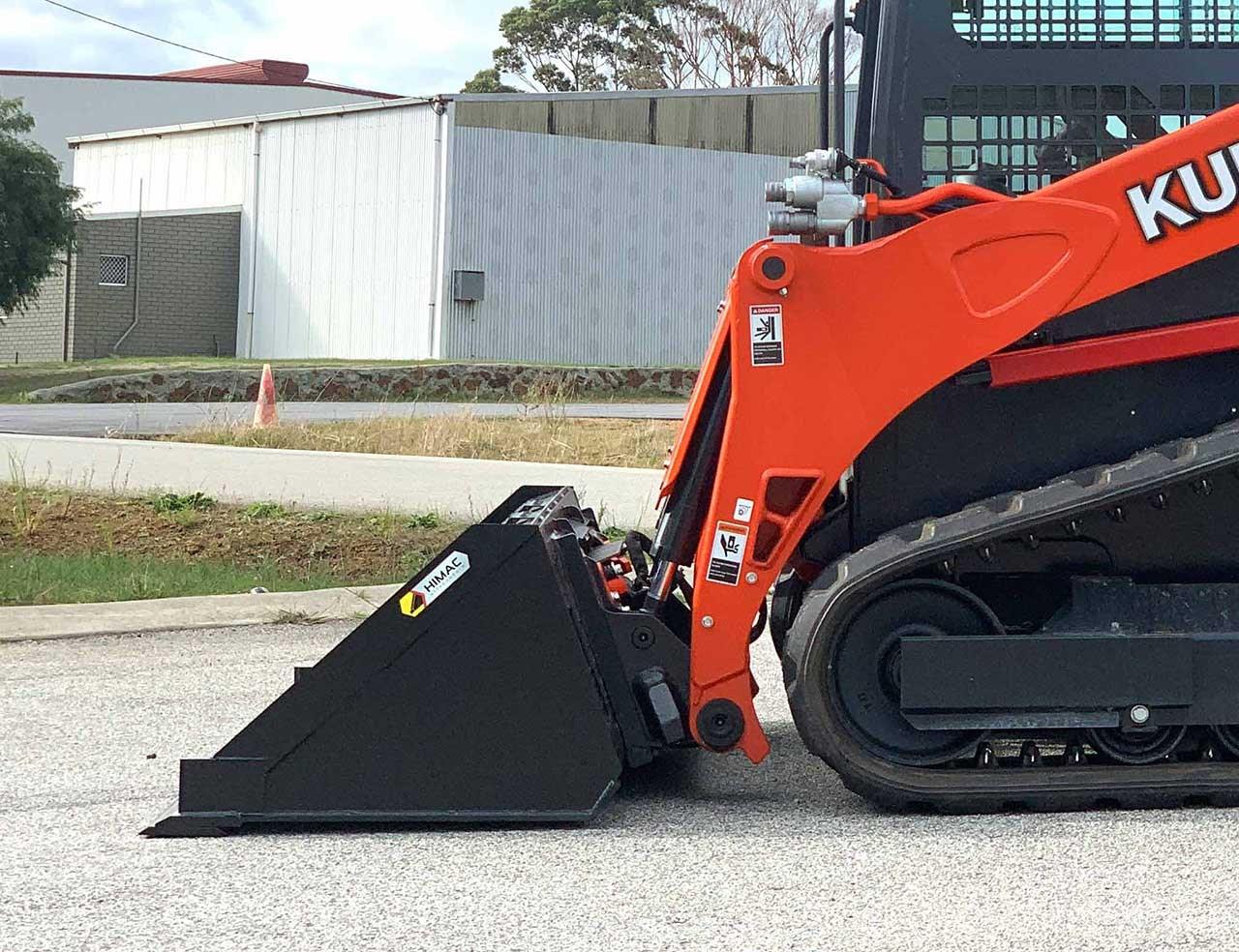

Click on the images below to enlarge.
Compact
1245 mm (49”) - 0.26 m3
1275 mm (50”) - 0.27 m3
1320 mm (52”) - 0.28 m3
1450 mm (57”) - 0.38 m3
Heavy Duty
1525 mm (60”) - 0.42 m3
1575 mm (62”) - 0.44 m3
1620 mm (64”) - 0.46 m3
1650 mm (65”) - 0.47 m3
1675 mm (66”) - 0.48 m3
1727 mm (68”) - 0.50 m3
1830 mm (72”) - 0.53 m3
1880 mm (74”) - 0.55 m3
1980 mm (78”) - 0.57 m3
2030 mm (80”) - 0.59 m3
Extreme Duty
1575 mm (62”) - 0.44 m3
1620 mm (64”) - 0.46 m3
1675 mm (66”) - 0.48 m3
1727 mm (68”) - 0.50 m3
1830 mm (72”) - 0.53 m3
1880 mm (74”) - 0.55 m3
1981 mm (78”) - 0.56 m3
2030 mm (80”) - 0.59 m3
2133 mm (84”) - 0.61 m3
